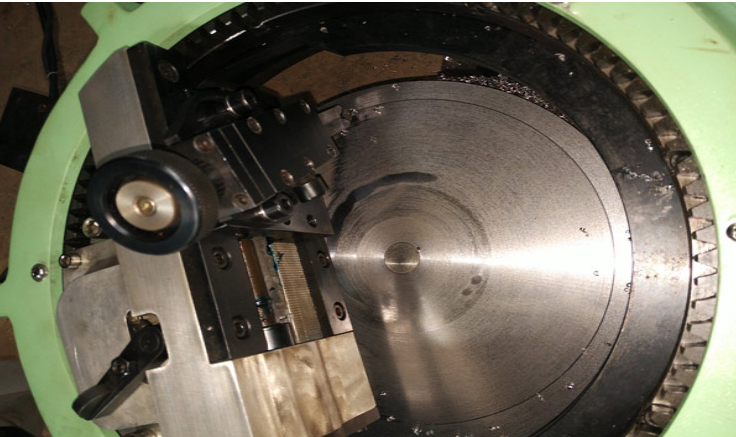

W300 External OD Mount Flange Facer

 W300 external mounting flange facing machines offer unparalleled performance with the range
containing the most reliable, durable, efficient and precise flange facing machines on the market. The innovative design incorporates the latest linear and ball screw technology, utilising the 360 degree powered tool posts allowing the operator to control these machines at ease reducing operational risks.

The W300 model is an externally mounted flange facing machine .This portable flange facer is designed to machine all types of flange facing, seal groove machining, weld preparation and counterboring..


Features and Benefits
Modular components and compact design make setup quick and easy.
Lightweight, precision built to optimise on-site performance
Fast set 4 jaw base for reduced set-up time
High accuracy, preloaded cross roller drive ensuring robust, repeatable machining
Geared continuous groove facing feeds for gramophone finish





Specifications
Facing Diameter
0-305 mm (0-12 Inches)
Clamping Diameter
50-305 mm (1.97-12 Inches)
R.P.M
0-20rpm
Flatness
≤0.1mm
Power Option
Electric motor 1.1Kw
